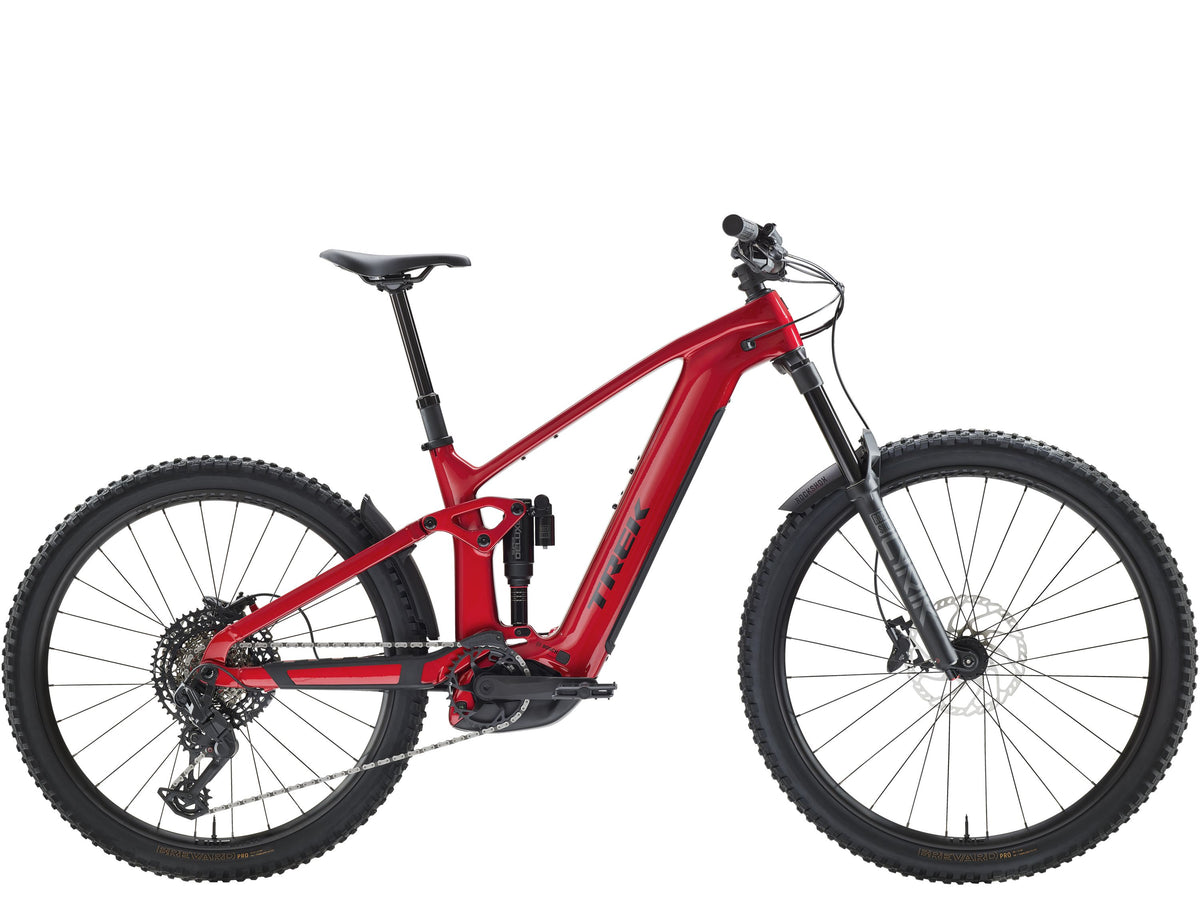

Trek Rail+ 9.7 GEN 5 2027
5348491
Price match request
Send us the details below and we’ll review it as quickly as possible.
Couldn't load pickup availability
Getting your bike
Free local delivery
Anywhere in Fife or Dundee. Once your order's placed, we'll be in touch to arrange a drop-off time that suits you. Your bike arrives built and ready to ride.
Click & collect
Choose collection at checkout, then wait for our confirmation — we'll message you once your bike has been through its full PDI and is ready to pick up from 2 Meadow Road, Leuchars, KY16 0EX.
Outside the area? We ship UK-wide, 95% pre-built. Questions? Call 01334 838989.
The Rail+ 9.7 is a carbon enduro e-MTB built for your biggest adventures. Its rugged OCLV Mountain Carbon frame, with alloy chainstay and seatstay, delivers 160 mm front and rear travel from a RockShox Lyrik fork and Super Deluxe Select+ RT shock, making rowdy lines and root lattices a walk in the park. You get a Shimano XT/SLX drivetrain for 12-speed shifting you can count on, SRAM DB 8 4-piston brakes, a Bontrager Line dropper post and Bontrager Line TLR tubeless-ready wheels for rolling into anything.
Technical Specs
Technical Specs
|
Frame |
OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel |
|---|---|
|
Fork |
Rockshox Lyrik, Delta RC, DebonAir+, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel |
|
Shifters |
Non Applicable |
|
Front Derailleur |
Non Applicable |
|
Rear Derailleur |
SRAM Eagle 70, T-Type |
|
Crank-set |
FSA alloy, 160 mm length // E*thirteen E*spec Race carbon, 165 mm length |
|
Cassette |
SRAM Eagle XS-1270, T-Type,10-52, 12-speed |
|
Chain |
SRAM Eagle 70, T-Type, 12-speed |
|
Motor |
Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) |
|
Battery |
Bosch PowerTube 800 Wh, smart system |
|
Tyres |
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" |
|
Wheel-set |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle // Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle // Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
|
Saddle |
Bontrager Verse P3, steel rails |
|
Seatpost |
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
Brakes |
Shimano MT620 hydraulic disc |
Delivery Information
Delivery Information
We carry lots of stock at Fife Cycles and also have an external warehouse where we get items transferred from.
If the part you want to buy is in stock with us then it will leave us SAME DAY if ordered before 1PM .
It will be sent via Royal Mail or Fedex depending on size and goes on a 24 Hour service complete with Tracking details.
If the item is displayed as 'In stock via Treks warehouse' then expect the order to take a little longer to fulfil (4-8 working days).
Can I return my order?
Can I return my order?
Of course you can.
We accept 30 day returns and even provide a return service free of charge.
Items returned must be in their original packaging and must not have been used.
Return your order here.
Warranty
Warranty
We have you covered. We only deal with great brands so you will always be covered by the manufacturers warranty.
Trek - 2 year warranty
Bontrager - 2 year warranty
Santa Cruz - 2 year warranty
Sram- 2 year warranty.
Shimano - 2 year warranty
Wahoo Fitness - 2 year warranty
Do you have a warranty request? get in touch here.
We also take all debit and major credit cards including paypal.
Technical Specs +
- Brand
- Trek Bicycles
- Product type
- Electric
- SKU
- 5348491
- Size
- S, M, L, XL
- Colour
- Fury Red/Dark Star, Dark Star/Lithium Marble
For full manufacturer specifications, please ask our team.
Spare Parts Diagrams +
Need an exploded diagram or help identifying a compatible spare part? Ask our team and include your bike model and year.

£5,500.00
