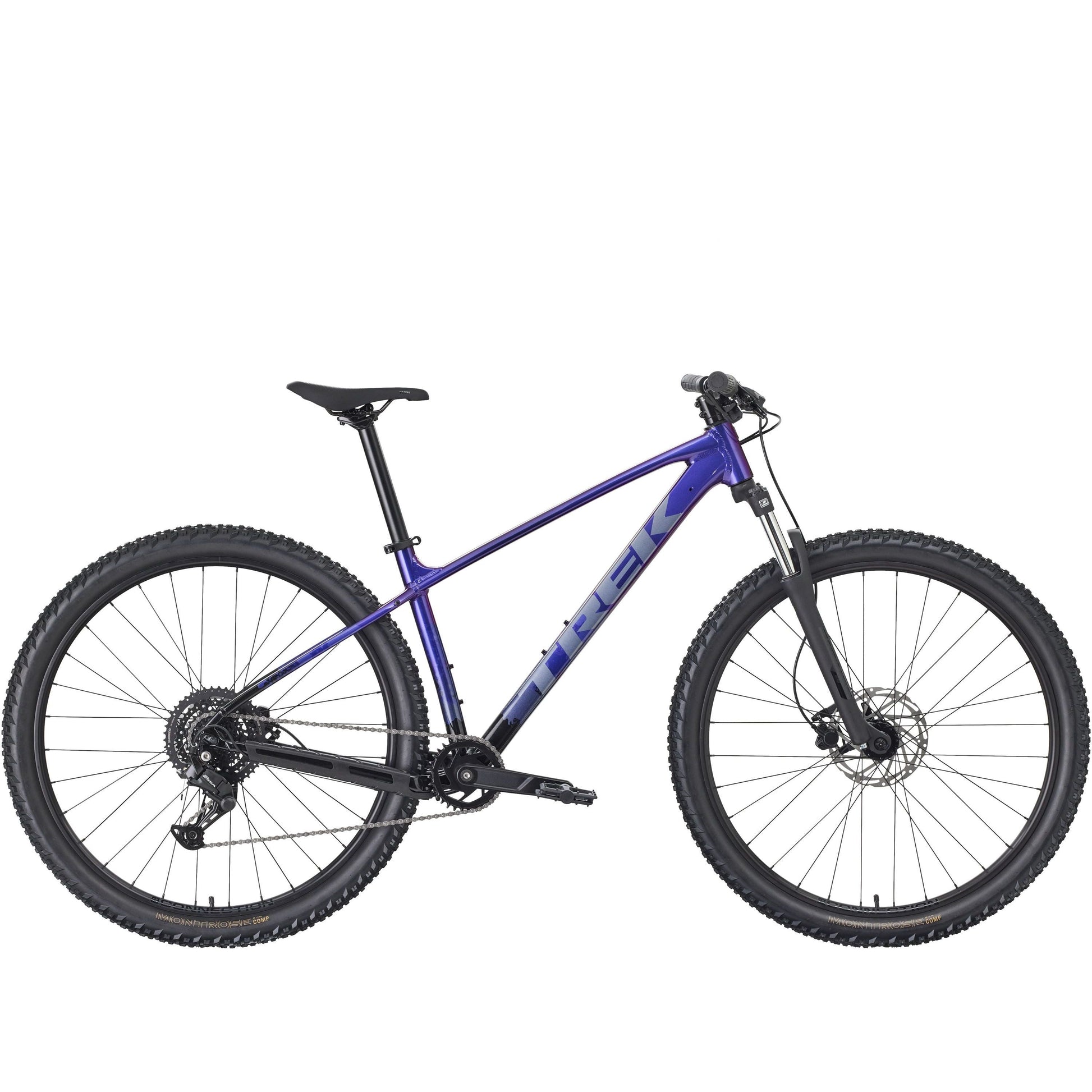

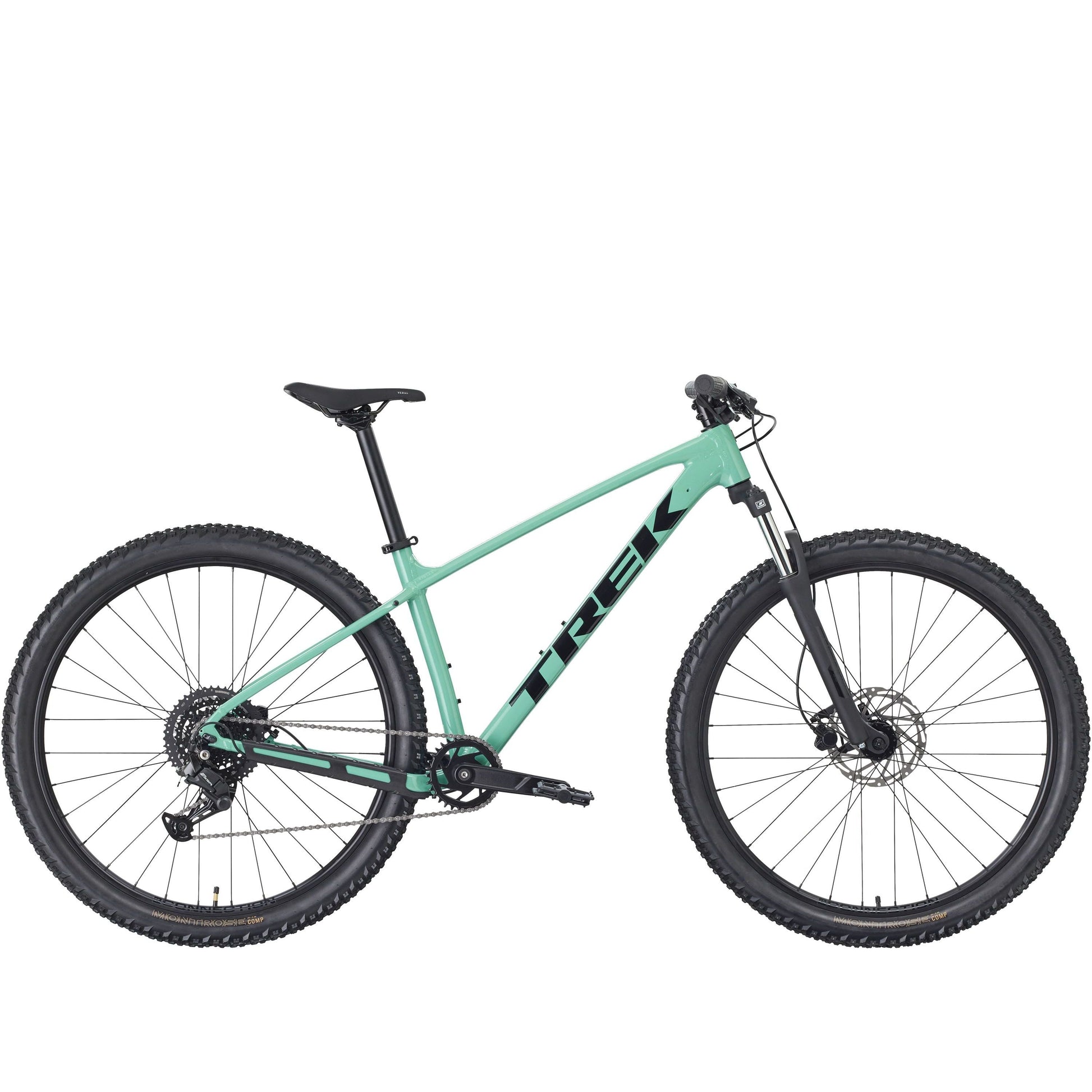

Trek Marlin 4 GEN 3 2027
5336962
Price match request
Send us the details below and we’ll review it as quickly as possible.
Couldn't load pickup availability
Getting your bike
Free local delivery
Anywhere in Fife or Dundee. Once your order's placed, we'll be in touch to arrange a drop-off time that suits you. Your bike arrives built and ready to ride.
Click & collect
Choose collection at checkout, then wait for our confirmation — we'll message you once your bike has been through its full PDI and is ready to pick up from 2 Meadow Road, Leuchars, KY16 0EX.
Outside the area? We ship UK-wide, 95% pre-built. Questions? Call 01334 838989.
In stock at Fife Cycles. Free local delivery across Fife, Dundee & St Andrews — built, checked and ready to ride. Pay in 3 with Klarna. Buying for Christmas? We'll keep it hidden until Christmas Eve.
The Marlin 4 is where the range starts, and it's a proper mountain bike from the first ride: the same Gen 3 Alpha Silver aluminium frame as the rest of the Marlin family, a suspension fork, hydraulic disc brakes and a simple, reliable 1x8 Shimano drivetrain. Nothing to fiddle with, nothing to break. It's the sensible first MTB for teens, students and anyone getting back on a bike.
Why we rate it
- Shimano ESSA 1x8 — a single chainring and an 11–45 cassette means no front derailleur to fuss with, and a low enough gear for the hills.
- Tektro hydraulic disc brakes — real stopping power with light lever effort, even in Scottish weather.
- SR Suntour suspension fork with 100mm travel (80mm on XS).
- Rack and kickstand mounts — easy to turn into a commuter.
- Same frame as the dearer Marlins, so it can be upgraded as you go.
Who it's for
First-time mountain bikers, kids who've outgrown a 24" bike, and anyone who wants a tough, low-maintenance bike for tracks, paths and the odd trail centre blue. If you know you'll be riding every week, look at the Marlin 5 — the CUES drivetrain is a real step up.
Key spec
- Frame: Alpha Silver Aluminium, internal routing, 135x5mm ThruSkew rear axle, 2.4" tyre clearance
- Fork: SR Suntour XCE 28, coil, preload, 100mm (80mm on XS)
- Drivetrain: Shimano ESSA U2000 1x8, 30T narrow-wide ring, 11–45 cassette
- Brakes: Tektro hydraulic disc, 160/180mm rotors
- Wheels: Bontrager Connection double-wall rims, Formula hubs
- Tyres: Bontrager Montrose Comp 2.4" (29" on M and up, 27.5" on XS/S)
- Weight: approx. 14.9kg (M)
- Sizes: XS, S, M, M/L, L, XL, XXL
Sizing
XS 147–155cm · S 153–162cm · M 161–172cm · M/L 165–175cm · L 174–185cm · XL 184–195cm · XXL 192–203cm. Not sure? Call us on 01334 838989 and we'll size you properly.
Buying from Fife Cycles
- Free delivery across Fife, Dundee and St Andrews, or collect from 2 Meadow Road, Leuchars
- Pay in 3 with Klarna at checkout — 18+, T&Cs apply
- Buying for Christmas? Order now and we'll keep it boxed and hidden until Christmas Eve, then deliver or hand it over on the day you choose
- Trek Authorised Dealer — full warranty and a free first service
- Cycle to Work schemes accepted
Technical Specs
Technical Specs
|
Frame |
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
|
Fork |
SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
Shifters |
Non Applicable |
|
Front Derailleur |
Non Applicable |
|
Rear Derailleur |
Shimano ESSA U2000 |
|
Crank-set |
ProWheel alloy, 32T narrow-wide steel ring, 160 mm length |
|
Cassette |
Shimano HG300, 11-45, 8-speed |
|
Chain |
KMC Z8.3, 8-speed |
|
Motor |
Non Applicable |
|
Battery |
Non Applicable |
|
Tyres |
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40" |
|
Wheel-set |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
Saddle |
Bontrager Verse Short, stainless steel rails |
|
Seatpost |
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Brakes |
Tektro HD-M276 hydraulic disc // Tektro HD-M276 hydraulic disc // Power BH-M286TF hydraulic disc, 160 mm rotor // Power BH-M286TF hydraulic disc, 160 mm rotor |
Delivery Information
Delivery Information
We carry lots of stock at Fife Cycles and also have an external warehouse where we get items transferred from.
If the part you want to buy is in stock with us then it will leave us SAME DAY if ordered before 1PM .
It will be sent via Royal Mail or Fedex depending on size and goes on a 24 Hour service complete with Tracking details.
If the item is displayed as 'In stock via Treks warehouse' then expect the order to take a little longer to fulfil (4-8 working days).
Can I return my order?
Can I return my order?
Of course you can.
We accept 30 day returns and even provide a return service free of charge.
Items returned must be in their original packaging and must not have been used.
Return your order here.
Warranty
Warranty
We have you covered. We only deal with great brands so you will always be covered by the manufacturers warranty.
Trek - 2 year warranty
Bontrager - 2 year warranty
Santa Cruz - 2 year warranty
Sram- 2 year warranty.
Shimano - 2 year warranty
Wahoo Fitness - 2 year warranty
Do you have a warranty request? get in touch here.
We also take all debit and major credit cards including paypal.

Find your Marlin size
Tell us your height and who's riding — we'll tell you which size to order.
Enter a height and hit Show my size.
Trek Marlin size chart
Trek's recommended rider height for each frame size. Your match is highlighted after you use the finder above.
| Size | Rider height (cm) | Rider height (ft / in) | Wheels |
|---|---|---|---|
| XS13.5" | 147 – 155 cm | 4'10" – 5'1" | 27.5" |
| S15.5" | 153 – 162 cm | 5'0" – 5'4" | 27.5" |
| M17.5" | 161 – 172 cm | 5'3" – 5'8" | 29" |
| M/L18.5" | 165 – 175 cm | 5'5" – 5'9" | 29" |
| L19.5" | 174 – 185 cm | 5'8" – 6'1" | 29" |
| XL21.5" | 184 – 195 cm | 6'0" – 6'5" | 29" |
| XXL23" | 192 – 203 cm | 6'4" – 6'8" | 29" |
£525.00
