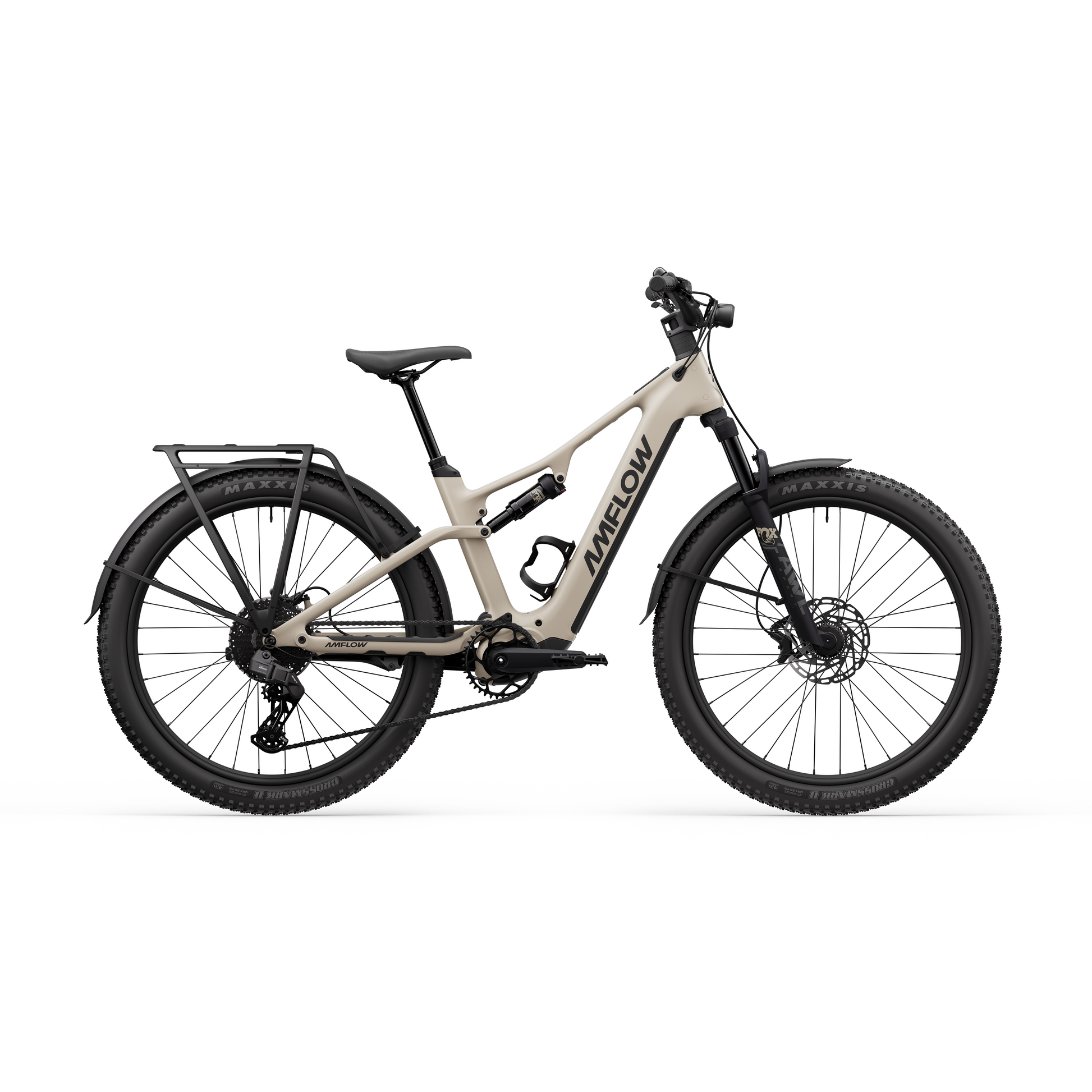

Amflow TL Carbon 2027

The Amflow TL Carbon is your everyday-to-adventure e-bike — full suspension, a removable Avinox battery system good for up to 1,280Wh, and touring-ready out of the box.

Amflow TL Carbon 2027

Name: Amflow TL Carbon 2027
Brand: Amflow
SKU: amflwtl1m
Price: 3199.0 GBP
Availability: InStock

amflwtl1m

New

£3,199.00

£3,199.00 ~~£3,199.00~~

Select size:

S-M L-XL

Select colour:

Silica Beige

Amflow TL Carbon — Fully Loaded for Adventure

The TL Carbon is the Amflow built for life beyond the trailhead. Take it to work on Monday and load it up for a multi-day adventure by the weekend — same bike, no compromises.

At its heart is the Avinox M2 drive unit (110Nm nominal / 125Nm peak), paired with real-time traction control that reads the terrain and keeps you gripped up even when the surface won't cooperate. Smooth Shift handles your gear changes automatically through the TRP E.A.S.I. electronic derailleur, so you can stay focused on the road or trail ahead instead of the shifter. A heart-rate-zone mode lets you set a target and let the bike manage assistance to keep you there.

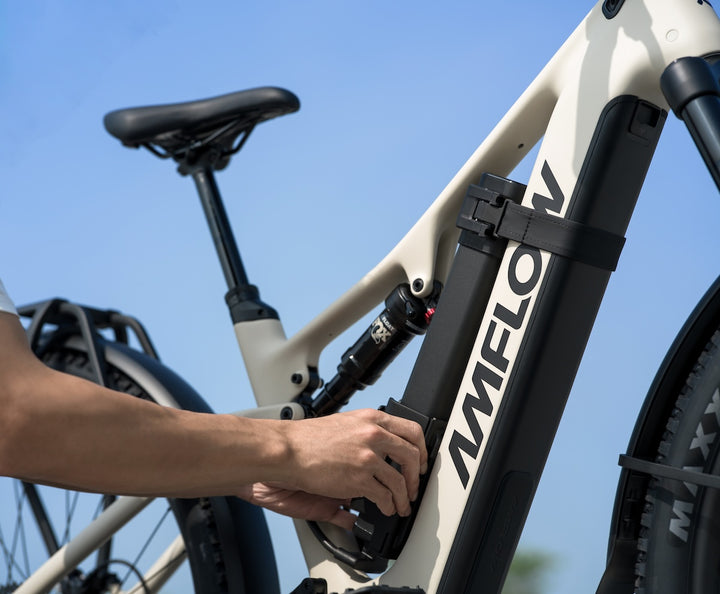

Range anxiety isn't a thing here. The removable Avinox RS800 battery delivers a standard range of up to 172km, and with the optional charging hub you can top up to four batteries overnight — swap a fresh one in seconds and keep riding. Total system capacity runs up to 1,280Wh.

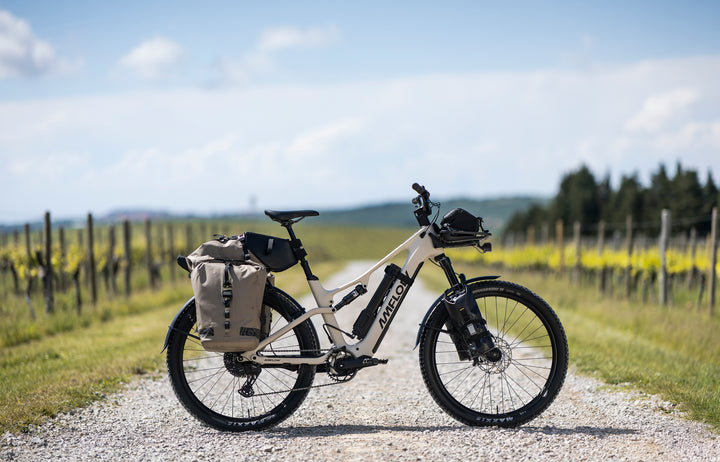

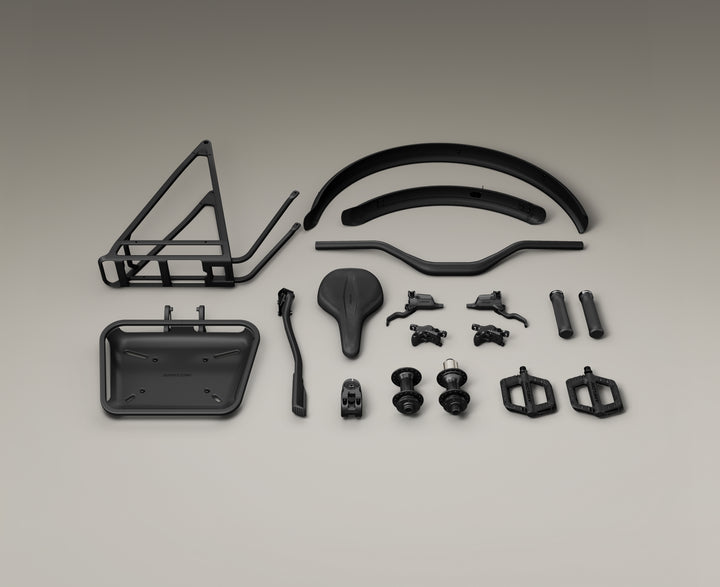

Built on a full-suspension carbon frame (FOX FLOAT Rhythm rear shock, FOX AWL Sport 120mm fork) in Silica Beige, the TL Carbon is rated to carry up to 200kg with its modular mounting points — front and rear racks, mudguards, and bike trailer compatibility all built in. It comes ready to load: Amflow touring rear rack, front and rear mudguards, a touring kickstand, bottle cage, Elite MTB pedals, and an Avinox front light with a Sate-Lite M8 rear light are all included.

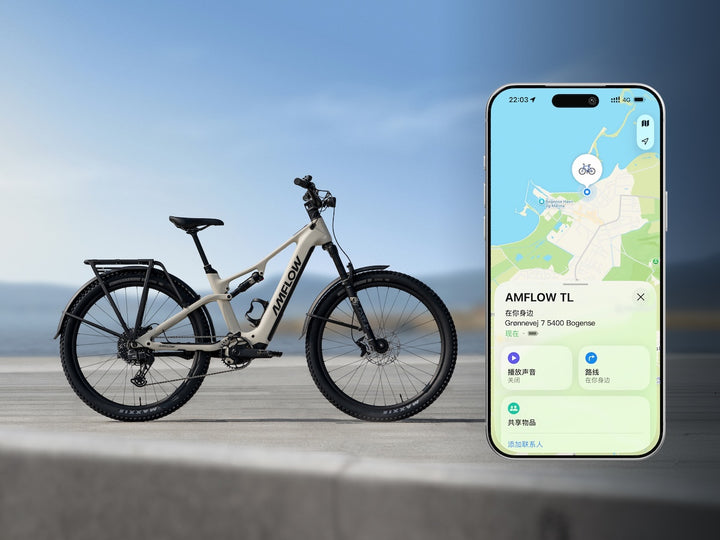

Smart features round it out: offline navigation keeps you on course when the signal drops, and Apple Find My keeps the bike trackable even out of view. Sealed against rain, dust, heat and cold, the TL Carbon is built to handle whatever the ride throws at it.

Key specs

Motor: Avinox M2, 110Nm nominal / 125Nm peak torque
Battery: Avinox RS800, removable, up to 1,280Wh total capacity
Charger: Avinox 4A, 168W output (optional 4-bay charging hub)
Range: up to 172km standard
Frame: Amflow TL Carbon, full suspension, Silica Beige, 27.5"/29" wheel compatible
Fork: FOX AWL Sport, 120mm travel
Rear shock: FOX FLOAT Rhythm, 190x45mm, TL-tuned
Drivetrain: TRP E.A.S.I. electronic derailleur, 10/11-speed, 11-43T
Brakes: Tektro TKD173 hydraulic, 4-piston, 180mm rotors
Display: Avinox DPC100, 2" OLED
Max carry weight: 200kg
Included accessories: rear rack, front/rear mudguards, kickstand, bottle cage, pedals, front + rear lights, two battery keys, torque wrench

Amflow TL Carbon 2027

£3,199.00

800WH BATTERY
100km+ range
AVINOX M2 MOTOR
125nm peak Torque
READY FOR ADVENTURE
Racks | Lights | Mudguards
27.5" Wheels
Versatile & Nimble

Full specification

Drive system

Drive unit Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m

Battery Battery: Avinox RS800 Battery (Removable)

Suspension

Fork FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset

Drivetrain

Shifters Wireless Controllers: Avinox Wireless Controller × 2 (One on each side of the handlebar)

Rear derailleur Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur

Crankset Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm) Chainring: Avinox Direct Mount Chainring (38T)

Cassette Cassette: CS-M5243, 10-Speed, 11-43T

Chain Chain: Avinox eGlide T Chain (10S/11S, 118 Links)

Wheels & tyres

Wheels Amflow HTA-25 Rear Wheel (27.5″) | Amflow HTA-25 Front Wheel (27.5″)

Tyres Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Brakes

Brakes Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow

Rotors Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Fit & comfort

Frame Amflow TL Carbon Frame Silica Beige Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels Compatible With Front and Rear Mudguards Compatible With Rear Rack and Front Rack Compatible With Bike Trailers (Requires Trailer Thru-Axle)

Saddle Amflow Touring Saddle

Seatpost Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm) S/M Size Frame: 150mm L/XL Size Frame: 170mm

Handlebar S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise

Why BUY from Fife Cycles?

Scotland’s top authorised Amflow dealer with full DJI/Avinox support

5 year frame warranty and full after-sales care

0% finance, major Cycle to Work schemes accepted

Fast UK delivery or personal handover in Leuchars

Meet the team.

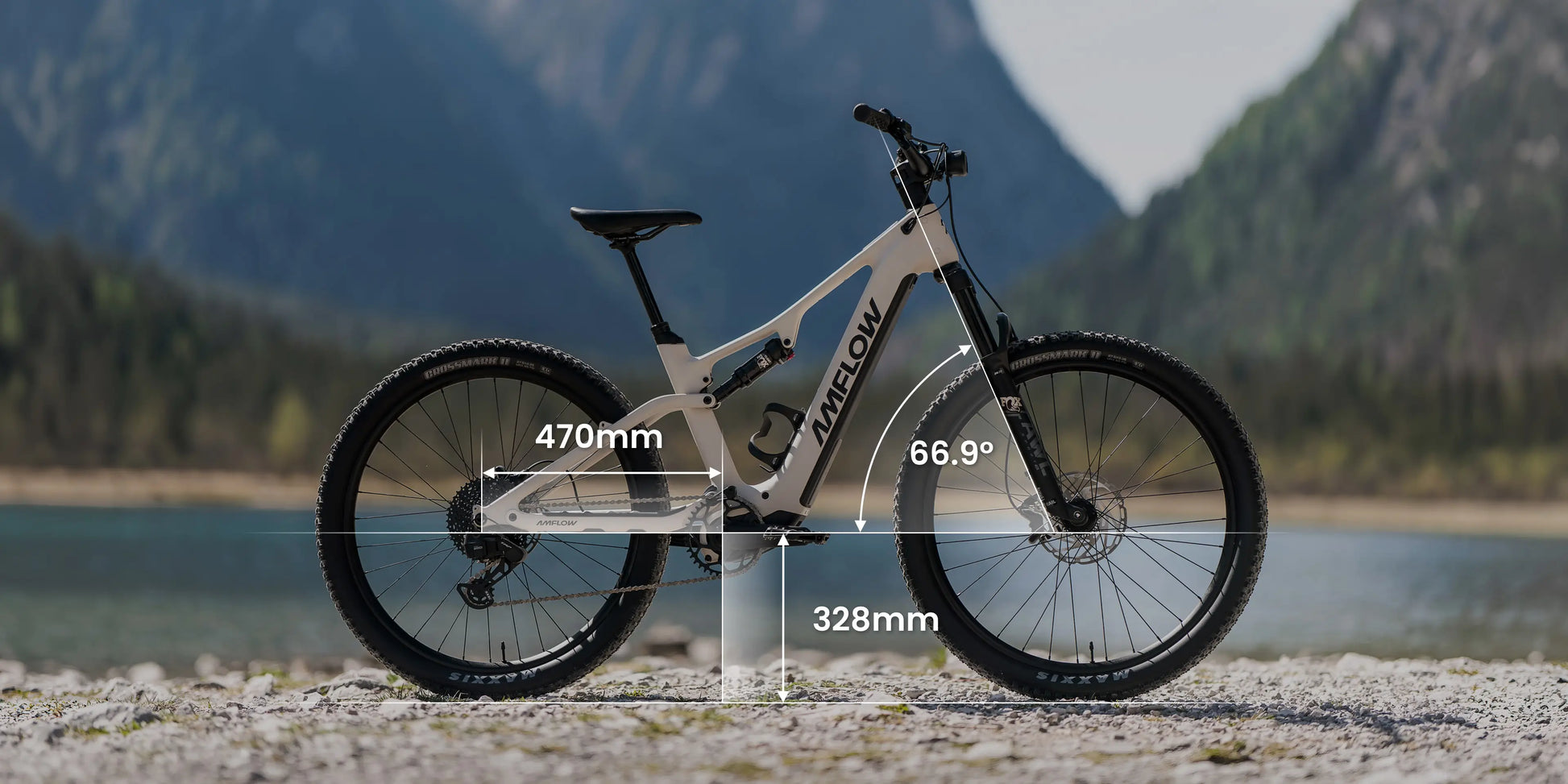

Measurement	S	M	L	XL
A. Reach	375.3 mm	375.3 mm	412.7 mm	412.7 mm
B. Stack Height	628.4 mm	628.4 mm	653.9 mm	653.9 mm
C. Standover Height	750.5 mm	750.5 mm	755.3 mm	755.3 mm
D. Front Center	674 mm	674 mm	722 mm	722 mm
E. Fork Length	545 mm	545 mm	545 mm	545 mm
F. Wheelbase	1144 mm	1144 mm	1192 mm	1192 mm
G. Chainstay Length	470 mm	470 mm	470 mm	470 mm
H. Bottom Bracket Drop	32 mm	32 mm	32 mm	32 mm
I. Bottom Bracket Height	328 mm	328 mm	328 mm	328 mm
J. Effective Top Tube Length	603.2 mm	603.2 mm	651 mm	651 mm
K. Head Tube Angle	67°	67°	67°	67°
L. Head Tube Length	120 mm	120 mm	148 mm	148 mm
M. Actual Seat Tube Angle	67.8°	67.8°	67.8°	67.8°
N. Effective Seat Tube Angle	70°	70°	70°	70°
O. Seat Tube Height	412.8 mm	412.8 mm	447.6 mm	447.6 mm
P. Stem Length	35 mm	57.4 mm	35 mm	57.4 mm
Q. Stem Height	21 mm	35 mm	21 mm	35 mm
